Hardware and Function for Internet Access

Hardware (Hardware) needed to access the Internet and its functions, among others are:
1. Computer
2. Modem
3. Line (Line Telephone), Cable TV, ISDN, Mobile

1. COMPUTER
Computers are a major component to be able to access the internet. Computer specifications used in the Internet connection is fast or slow performance to determine Internet access. the higher the specification of a computer, the faster the performance of Internet access, and vice versa.
Minimum specifications of a computer in internet access among others as follows:

Processor
is the brain of the computer to run applications in the computer. Minimum Pentium III 500MHz processor.

RAM (Random Access Memory) serves as a temporary storage medium. Minimum 64MB RAM

Harddisk

used for data storage media secarmagnetik. At least 10GB hard drive

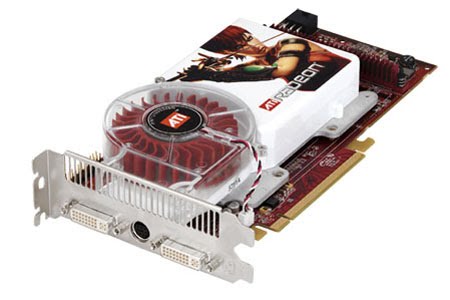

VGA card
Is the hardware for menampilakan image on the monitor screen. VGA card at least 4MB.

Monitor
Is an output device.


2. MODEM
M
Odem acronym derived from modulator demodulator. Modulator is the part that converts the signal information into the carrier signal (Carrier) and is ready to be sent, while the demodulator is the part that separates the information signal (which contain data or messages) of the signal (carrier) that accepted so that information can be received well. Modem is a merger of both, it means the modem is a two-way communication tool.
In short, the modem is a device to convert the computer digital signals into analog signals and vice versa. Computers that connect to the internet connected to telephone lines via modems. Based on the modem functions are divided menjai three types. Among others:
• Dial Up Modem (Internal / External / Cable Modem / ADSL Modem)
Modem functions to convert the analog waves into digital signals into analog waves of telephone wires so that the computer can be connected to the Internet.
Dial Up Modem commonly used by the Personal Computer (PC) is directly connected via phone lines. Type of dial-up modem there are two kinds:

1) Internet Modem
Internet modem is a modem that is installed in the computer, especially the expansion slots are available in computer mainboard. Average speed internal modem for the download is 56 Kbps.
Advantages of using an internal modem, among other things:
a) More efficient place and a more economical price
b) Does not require an adapter so impressed there is a lot more concise without wires.
While the weakness of the internal modem, as follows:
a) This modem does not require an indicator light so it is difficult to monitor modem status
b) The modem is not using its own voltage source that requires power from the power supply. This resulted in temperature increases the heat in the CPU box.
2) External Modem
External modem is a modem that is located outside the computer CPU. An external modem connected to a computer via com port or USB. Installation of this modem is to connect the modem to the power and connect again to the adapter and then plugged back into power.
Gain an external modem:
a) Portability is well enough to be moved around for use on another computer
b) Equipped with indicator lights making it easy to monitor the status of the modem.

The weakness of the external modem:
a) The price is more expensive than the internal modem
b) Requires a separate place or location to put the modem.
• Cable Modem (Cable Modem)
Cable Modem (Cable Modem), is the hardware that connects your PC with a cable TV connection. This cable TV network can be used for connection to the Internet at speeds higher than dialup modem or ADSL modem, cable modem speed maximum of 27Mbps downstream (to the user's download speed) and 2.5 Mbps upstream (upload speed of the user).
Before you can connect to the Internet, so users are required to register with cable TV service providers and ISPs (Internet Service Provider).
• Modem ADSL (Asymmetric Digital Subscriber Line)

ADSL or Asymmetric Digital Subscriber Line is a form of DSL technology. Characteristic of ADSL is its asymmetric, namely that the data transferred in a different speed from one side to another.
The main idea is to split the ADSL phone line signal into two parts for voice and data. It allows users to melakuakn or receive a phone call and make an Internet connection simultaneously without disturbing each other.
Type of modem

1. Analog modem is a modem that converts analog signals into digital signals
2. ADSL Modem
3. Cable modem is a modem that receives data directly from service providers via cable TV
4. CDMA Modem
5. Modem 3GP
6. GSM Modem
3. Line (Line Telephone), Cable TV, ISDN, Satellite, Mobile
Line (Line Phone)
The telephone line is also an important and hardware needed to connect computers to the Internet. The use of the telephone line is also followed by the use of dial-up modem. Currently, we do not have to register again to the ISP, for example by using Instant Telkomnet package which can directly access the internet.
Cable TV
In addition to phone lines, to make Internet access can also be done by using cable TV. To be able to access the Internet using cable TV network, the modem used is a cable modem. To be able to use a cable modem, the computer must be equipped with ethernet (ethernet card). Access service to cable modem via cable TV networks to ISPs are: CBN, indosat, linknet, Centrin, and MyNet.
ISDN
ISDN (Integrated Services Digital Network) is a telecommunication system in which the services of data, voice, and images integrated into a network, and an analog telephone transmission systems to digital systems.
ISDN users are given the advantage of flexibility and cost savings, because the cost of this integrated system would be much cheaper when using a separate system. ISDN services are provided by the ISP, called NSP (Network Service Provider).
Inside there are two types of ISDN services, namely:
1. Basic Rate Interface (BRI)
2. Primary Rate Interface (PRI)
Satellite
VSAT (Very Small Aperture Terminal) is the signal from the satellite receiving station with antenapenerima shaped disc with a diameter of less than 3 meters.
The main function of the VSAT is to receive and send data to a satellite.
Mobile
The Internet also been developed for wireless applications (without cable) by using a mobile phone. The protocol used is called WAP. Wireless Application Protocol WAP is an abbreviated protocol messaging service or a technique that allows a digital mobile phone or mobile terminals that have a WAP facility, see / read the contents of a site on the internet in a special text format. WAP works with text mode with a speed of 9.6 Kbps. In addition to WAP, also developed technology GPRS (General Packet Radio Service), GPRS promises to speed starting from 56 kbps to 115 kbps, allowing for Internet access, multimedia data transmission to computers, notebooks and handheld computers. Currently, there is 3G (Third Generation) mobile phones based on CDMA (Code Division Multiple Access), which has 3G data transfer speeds up to 230 Kbps.
Read More..

List of device bandwidths

Note that the values given are maximum values, and actual values may be slower under certain conditions (for example, noisy phone lines).[10]
Connection Bitrate
Modem 110 0.1 kbit/s
Modem 300 (Bell 103 or V.21) 0.3 kbit/s
Modem 1200 (Bell 212A or V.22) 1.2 kbit/s

Modem 2400 (V.22bis) 2.4 kbit/s
Modem 2400 (V.26bis) 2.4 kbit/s
Modem 4800 (V.27ter) 4.8 kbit/s
Modem 9600 (V.32) 9.6 kbit/s
Modem 14.4 (V.32bis) 14.4 kbit/s
Modem 28.8 (V.34) 28.8 kbit/s
Modem 33.6 (V.34) 33.6 kbit/s
Modem 56k (V.90) 56.0/33.6 kbit/s
Modem 56k (V.92) 56.0/48.0 kbit/s
Hardware compression (variable) (V.92/V.44) 56.0-320.0 kbit/s
Server-side web compression (variable) 200.0-1000.0 kbit/s
Read More..

Dial-up Internet access

Availability

Dial-up connections to the Internet require no infrastructure other than the telephone network. As telephone access is widely available, dial-up remains useful to travellers. Dial-up is often the only choice available for rural or remote areas where broadband installations are not prevalent due to low population and demand. Dial-up access may also be an alternative for users on limited budgets as it is offered free by some ISPs, though broadband is increasingly available at lower prices in many countries due to market competition.
Dial-up requires time to establish a usable telephone connection (up to several seconds, depending on the location) and perform handshaking for protocol synchronization before data transfers can take place. In locales with telephone connection charges, each connection incurs an incremental cost. If calls are time-metered, the duration of the connection incurs costs. Dial-up access is a transient connection, because either the user, ISP or phone company terminates the connection. Internet service providers will often set a limit on connection durations to prevent hogging of access, and will disconnect the user—requiring reconnection and the costs and delays associated with it. Technically-inclined users often find a way to disable the auto-disconnect program such that they can remain connected for days.
A 2008 Pew Internet and American Life Project study states that only 10 percent of American adults still use dial-up Internet access. Reasons for retaining dial-up access span from lack of infrastructure to high broadband prices.[1] This has allowed Dial-up providers such as NetZero to continue spending marketing dollars to obtain customers and commit to having U.S. based customer support.
[edit]Performance


"Dial up modem noises"

Typical noises of dial-up modem while a modem is establishing connection with a local ISP-server in order to get access to the web.
Problems listening to this file? See media help.
Modern dial-up modems typically have a maximum theoretical transfer speed of 56 kbit/s (using the V.90 or V.92 protocol), although in most cases 40–50 kbit/s is the norm. Factors such as phone line noise as well as the quality of the modem itself play a large part in determining connection speeds. Some connections may be as low as 20 kbit/s in extremely "noisy" environments, such as in a hotel room where the phone line is shared with many extensions, or in a rural area, many kilometres from the exchange. Other things such as long loops, loading coils, pair gain, electric fences (usually in rural locations), and digital loop carriers can also cripple connections to 20 kbit/s or lower.
Dial-up connections usually have latency as high as 400 ms or even more, which can make online gaming or video conferencing difficult, if not impossible. First person shooter style games are the most sensitive to latency, making playing them impractical on dial-up. Many modern video games do not even include the option to use dial-up. However, some games such as Everquest, Red Faction, Star Wars: Galaxies, The Sims Online, Warcraft 3, Final Fantasy XI, Guild Wars, Unreal Tournament, Halo: Combat Evolved, Audition, Quake 3: Arena, and Ragnarok Online are capable of running on 56k dial-up.
An increasing amount of Internet content such as streaming media will not work at dial-up speeds.
Analog telephone lines are digitally switched and transported inside a Digital Signal 0 once reaching the telephone company's equipment. Digital Signal 0 is 64 kbit/s, therefore a 56 kbit/s connection is the highest that will ever be possible with analog phone lines.
[edit]Using compression to exceed 56k
The V.42, V.42bis and V.44 standards allow modems to accept uncompressed data at a rate faster than the line rate. These algorithms use data compression to achieve higher throughput.
For instance, a 53.3 kbit/s connection with V.44 can transmit up to 53.3 × 6 = 320 kbit/s if the offered data stream can be compressed that much. However, the compressibility of data tends to vary continuously, for example, due to the transfer of already-compressed files (ZIP files, JPEG images, MP3 audio, MPEG video).[2] A modem might be sending compressed files at approximately 50 kbit/s, uncompressed files at 160 kbit/s, and pure text at 320 kbit/s, or any rate in this range.[3]
[edit]Performance assessment

This section's factual accuracy is disputed. Please help to ensure that disputed facts are reliably sourced. See the relevant discussion on the talk page. (August 2009)
Many modems were manufactured as independent communications devices connected to the computer via an RS-232 cable. Modems are capable of independently managing the connection and monitoring signal quality, and can adjust the data rate as line conditions change.
In analog serial communications modems, once the connection is established, the data communications session consumes all available bandwidth.[citation needed] Often there is no backchannel capacity for the modem to communicate connection status to the end user or local computer.[citation needed] During the connection negotiation phase, modems transmit the connection speed to the attached computer in status reports. If the base data rate changes at a later time, there is no way to indicate this change to the local computer during the data communications session.[citation needed]
Although much more capable serial communications such as USB are now used, and in approximately 1992 the soft modem was developed that uses the internal computer CPU to handle modem communications, there is still no defined industry standard backchannel method available to indicate status information such as the current base rate and actual compression ratio, to the user of the local computer.
[edit]Compression by the ISP
As telephone-based 56 kbit/s modems began losing popularity, some Internet Service Providers such as TurboUSA, Netzero, CdotFree, TOAST.net, and Earthlink started using pre-compression to increase the throughput and maintain their customer base. As an example, Netscape ISP uses a compression program that squeezes images, text, and other objects at a proxy server, just prior to sending them across the phone line. The server-side compression operates much more efficiently than the "on-the-fly" compression of V.44-enabled modems. Typically website text is compacted to 5% thus increasing effective throughput to approximately 1000 kbit/s, and images are lossy-compressed to 15-20% increasing throughput to about 350 kbit/s.
The drawback of this approach is a loss in quality, where the graphics acquire more compression artifacts taking on a blurry appearance; however, the perceived speed is dramatically improved and the user can manually choose to view the uncompressed images at any time. ISPs employing this approach may advertise it as "DSL speeds over regular phone lines" or simply "high speed dial-up".
[edit]Replacement by broadband
Broadband Internet access (cable and DSL) has been replacing dial-up access in many parts of the world. Broadband connections typically offer speeds 700 kbit/s or higher for approximately the same price as dial-up.
However, many areas still remain without high speed Internet despite the eagerness of potential customers. This can be attributed to population, location, or sometimes ISPs' lack of interest due to little chance of profitability and high costs to build the required infrastructure. Some dial-up ISPs have responded to the increased competition by lowering their rates and making dial-up an attractive option for those who merely want email access or basic web browsing.[4][5]
[edit]Recession and its effect on service
News reports in 2009 have noted a resurgence of dial-up access in the U.S. resulting from a recessionary economy, as a more affordable way of accessing the Internet.[6][7][8]
Certainly high-speed DSL and Cable are available without local phone service, but the cost of this "naked" service is noticeably higher. AT&T offers basic DSL ("Direct Express") without a phone line for $19.95/month,[9] potentially negating any savings from canceling the phone service. Cable companies do not financially penalize a subscriber for not having a local phone, however cable Internet services are usually more expensive if the customer does not subscribe to their television services.
Social networking sites such as Facebook and Twitter feature mobile editions with limited graphics and reduced functionality, designed for slow Internet connections on mobile devices. These cut-down websites will also perform well on a PC or netbook with a dial-up connection, making modern social networking possible through traditional dial-up Internet access. The affordability of dial-up Internet (and low-end PCs such as netbooks) makes this one viable option for social networking in a recessionary economy.

Source: Wikipedia Read More..

Modem Dial Up Networking

Dial-Up Networking: a set of protocols and software used to connect a computer to the internet service provider (ISP), online service or a remote computer, through an analog modem and POTS (plain old telephone system).

Dial-up networking is a type of computer connection to the Internet's most widely used. In late 2000, more than a quarter billion subscribers to dial into the Internet - four times more than other popular access methods, such as broadband DSL, cable modems, and ISDN. Here are a few things you need to know:

Dial-up networking using a modem as an interface between a PC with a network like the Internet; modems usually have a speed of up to 56 kbps.

Dialing with a modem is still the cheapest way of internet access and most widely available. But because it has a relatively slow speed, sites rich in graphics take a long time to load.

The maximum speed in downloading data using a dial-up networking is limited to the phone system's analog bandwidth, line quality, and Internet traffic.

Dial-up networking usually communicates with the ISP using the Point to Point Protocol.

While broadband services like DSL, cable modems, and satellite, is widely available throughout the world, dial-up networking continues to grow. It is estimated that wireless connectivity will face the biggest challenge of dial-up networking in terms of subscribers in the future. In fact, analysts predict, at the end of 2001, people who use dial-up networking are two times more than those who use the service boradband to connect to the internet. In 2003 the gap will close, but dial-up networking is still the most popular way, with a ratio of 1:1.5.

Does A "Handshake"

Dial-up networking is the simplest way to connect to the internet: you only need to connect to your telephone line using a modem, if you are already subscribed to an ISP. Most likely, the software tools you need already exist on Windows, some ISPs, like Earthlink, furnish a user interface for easy setup. Whichever method is used, the dial-up customers usually only need to enter a user name and password, in addition to the ISP's phone number, to the dialog box that appears. Software dial-up networking using the information to build a connection with ISP and doing other work. After setup, which customers need to do is build a connection with double-clicking an icon.

When you do the "handshake", the dial-up networking modem first directs you to the ISP's phone number, which is answered by another modem at the other end. For a few seconds the modems send each other control signals to determine how fast each one can connect. Screeching you hear when you first connect the modem is the sound of your modem and the modem ISP "harmonize" the connection and determine the speed used.

If the connection is established, your modem will silence the internal speaker, and dial-up networking to send user name and password to the ISP using a process called CHAP (challenge handshake authentication protocol). At the ISP, a computer checks your user name and password against a database of consumers. If the ISP authenticates your information, the status of dial-up networking window disappears, and you are free to surf, check and send e-mail, download files, and so forth. The process can take anywhere from 30 seconds to 2 minutes.

Little More Slow, But Reliable

Dial-up networking as well break your data into chunks, encode it, and repacking the data before sending.

Dial-up networking using a method called PPP (Point to Point Protocol) to package the data to be sent through phone lines. Just as Ethernet, PPP data packets, often called a frame, consisting of several parts. There are beginning and end (called "wrappers" or wrapper) that bind the package. Just as Ethernet packets, the PPP frame contains a wrapper in the wrapper. Packaging help direct the data in the packet to its destination using different protocols, like TCP / IP, and also determine the type of data compression used on the package.

One important distinction between PPP frames and ethernet packet is the capacity of the repaired damaged PPP packet using a process called frame check sequence. A package is usually lost or damaged en route, when he arrived at his destination, a damaged ethernet packets discarded and demand will return to the computer that sent the packet to send it back - a very time-consuming process if you use a dial-up, which is much slower than broadband.

In contrast, one part of a PPP wrapper contains a chunk of data called the validation value or the value of validation, which is verified at the destination. In some cases, PPP frames are damaged can be restored through the validation, so no need to be sent back.

If this process saves valuable time that would otherwise be used to send back any damaged package, error-recovery features tend to cause the PPP PPP work slower than a simpler protocol, which has no such error correction. But the internet is a dangerous place for packet data, errors or other problems can cause dozens of packets every second. In the long run, PPP is more suitable for the Internet protocol that is more flexible than others, so it has survived and flourished.

Still Survive - To Present

Any ISP using dial-up networking to connect a computer to the Internet. The most easily recognizable is the national information service and a large ISP. Companies like America Online, EarthLink, AT & T WorldNet, and MSN are the names of which are well known in the past 10 years, and offering services to almost all U.S. (and often provides international access as well). Each of these companies offer interface and dial-up networking built-on its own, with various levels of customization and feature complement.

But often there are some obstacles if you use the interface ISPs: some ISPs restrict access to Internet users who are not part of the bid. America Online, for example, claim to have the largest number of subscribers compared to ISPs and other information services. AOL offers its customers a wide selection of clubs, user groups, and a series of files. So many things to do, so many AOL subscribers only know how to use features and services within the limits established by AOL. This causes them to not get away from AOL.

On the other hand, more and more customers are choosing to use this kind of subscription-only to connect to the dorm. You, for example, can directly use AOL as an ISP, but only a few users who do so.

Small ISPs, Great Service

Small local ISPs typically offer more competitive services, the more non-binding interface, and a variety of different services. "Local" does not mean they are limited geographically. Often they also use the network head-end the same, such as GRIC Alliance, which used a large ISP. And this network provides national access number (even international) to the local ISP. Earthlink and MSN, for example, uses the same network, as well as other small ISPs.

There is also a free ISP, which offers basic connection via the user interface. The tendency, free ISP presents a lot of ads on its interface, and little or no technical support at all if there is a problem. Recently, this kind of service started to charge for their services.

Bright Future

Dial-up networking is a mature technology; over the years, the development of existing technology have improved performance, but not accompanied by adequate amounts. Development of dial-up networking significantly recently is the launch of the V.90 standard, which allows the modems that are used in the two previous standards are not compatible, interconnected. As a result, most modems can be connected with a maximum rate of 56 kbps.

(56K-bps modem specifications, in fact, only translated 52K-bps, and the average maximum of 40K-bps throughput. The quality of copper phone wires and phone jacks are used, the distance the user from the telephone company central office, and internet traffic density and a site, determine the quality of the connection.)

A new standard, called V.92, promising increased upstream rate using pulse code modulation, a more efficient way to retrieve and package the data for transmission. The standard also adds convenience features. With V.92, users who subscribe to the call-waiting service from your telephone company will be able to take a call without losing the connection to the internet. Other V.92 feature, called Quickconnect, given the information "handshake" between your modem with dial-up service, saving connection time is almost half.

With compression technology in sight that promises improved performance using smaller cables and convenience features V.92, seems to dial-up networking will be increasingly on the rise, at least for now. Read More..

Step by Step Dial Up (PPPoE) Speedy with Winbox Mikrotik

Mikrotik has its own advantages in terms of dialup internet. PPPoE facilities had been packed with a very compact so that the process of setting can be done quickly. Besides its own dialup process is also very fast. At least not when compared to dialup than Windows (at least), even from the modem itself.

In the previous post I wrote about how the settings of the router mikrotik speedy dialup via command line. But for a more comfortable and liked the GUI mode, this time I present Winbox dialup settings. Let's get started ...

PREPARATION

To anticipate things that are not desirable, I suggest you backup your speedy modem settings first. Almost every modem is equipped with this facility. Configuration given by the officer to your backup in the form of a file that later can you call again to return the ADSL modem settings to its original state easily.

Please go to the modem settings with memuka browser and enter the address of the modem (default: http://192.168.1.1).

Entrance on the following service information and record all the information about the existing LAN and WAN.

When all was ready,

1. The first time, you need to prepare the modem first. Set the modem functions as a bridge, not as a PPPoE Dialer. I never use the modem Articonet ACN-100R and TP-Link TD8117 setting more or less the same way.

Open your browser, enter the address of the modem (the default is http://192.168.1.1)

For Articonet:

Enter your username and password: admin / admin
Select the "Advanced Setup"> "WAN", click the "Edit" Enter the value of PVC Configuration: (insert the appropriate value of TELKOM each region). This value can you see here.
VPI = X (setting I = 8)
VCI = XX (setting I = 8)
This information can be obtained from Telkom or other qualified officer who did the installation. If you're still not convinced with the right settings on your location, please check the configuration in the following text:
Setting Modem Speedy from Various Areas

Service Category = UBR Without PCR, and then click Next
Connection type = Bridging
Encapsulation = LLC, then click the Next button
Mark the check box option "Enable Bridge Service", Next and end with Save
Then click on Save / Reboot, wait a while + - 2 minutes until the process is complete reboot the modem.

To Modem TP-Link TD8117 easier. After login, just follow the step-by-step it from the Start Menu Up> Wizard> Select Connection Bridge> End with a click Finish

2. Furthermore, the IP settings for each of the LAN Card. If you find any difficulty setting this IP, I have a guide here, so one with speedy dialup settings via command line. Topology I've made as follows:

[INTERNET] - [ADSL Modem] - [ROUTER MIKROTIK] - [SWITCH ]---[ CLIENT]
xxx.xxx-192.168.1.1/192.168.1.100-192.168.1.103/192.168.30.1-192.168.30.2-192.168.30.254

* UPDATE *
Description:
Each of the following hardware features 2 IP, an IP to connect to UP (up) and one IP for connection DOWN (down). Hardware I mean the ADSL Modem and Router with the following information:
MODEM:
- Up: 125.164.xxx.xxx -> Public IP of Speedy, this IP automatically you'll get from the server when you do a dialup speedy.
- Down: 192.168.1.100 -> Set a static IP in the LAN modem settings. This IP is used to connect to the router / network under the modem.
Mikrotik Router:
- Up: 192.168.1.103 -> IP Settings is on the first Ethernet card you use to connect the Router with Modem. Note, IP and netmasknya be in a range with IP Modem.
- Down: 192.168.30.1 -> IP to IP Gateway LAN and client guidelines. Set the IP settings on the Ethernet card kedu. How these IP settings can be found here: How speedy dialup settings via command line.

3. Open Winbox, we will begin setting PPPoE-Client proxy.

Login to Winbox, enter your ip address, in this case the proxy IP from the LAN. In the example I used 192.168.30.1. Enter your username and password as well.
From the main view, select the PPP to access the following pages

Click the + sign to add PPP PPPoE Client from the box, then select the PPPoE Client

add new ppp client
Then will come the New Interface box, then on the General tab in the Name field we named
PPPoE connection in this article uses the name "pppoe-speedy". Select the "interface" that you use. This interface is an Ethernet-connected ADSL modem. In the example case here, I select the ethernet handle links by IP 192.168.1.103.

general setting mikrotik pppoe-client
Stay in the New Interface, select the Dial Out. Enter your username and password speedy account. Leave the other settings in the default state. Make sure you mencontreng Add Default Route option below.

pppoe-client interface settings speedy on mikrotik
Click OK to activate the settings we just created.

Furthermore, let stand for a moment and wait for dial Mikrotik perform their duties to the speedy. If settings are correct we eat comes the results of our previous setup. If we consider, uptime column will run and calculate the duration of speedy connection.

To perform a check, please select Tools> Ping, enter the address that will diping. Here I enter this web address, www.guntingbatukertas.com. The result looks like this.

ping results mikrotik speedy connection

setting ip address in windows network settings

4. You can just direct IP Gateway client computer to the router mikrotik this.

Eventually the ping from the client side to ensure the connection is running smoothly.

How, easy right?
